Accubuilt Trail Series Wagon Chassis - DEPOSIT
Regular price
$5,000.00
Sale price
$1,000.00
Shipping calculated at checkout.
This deposit reserves your production slot for an Accubuilt Trail Series Wagon chassis.
Mark threw price is total chassis cost.
This non-refundable deposit goes toward the final price of your chassis.
If you are interested or have any questions please reach out to Jaxon@Accubuiltllc.com or text/call Jaxon at (682)-217-7886.
Chassis Highlights

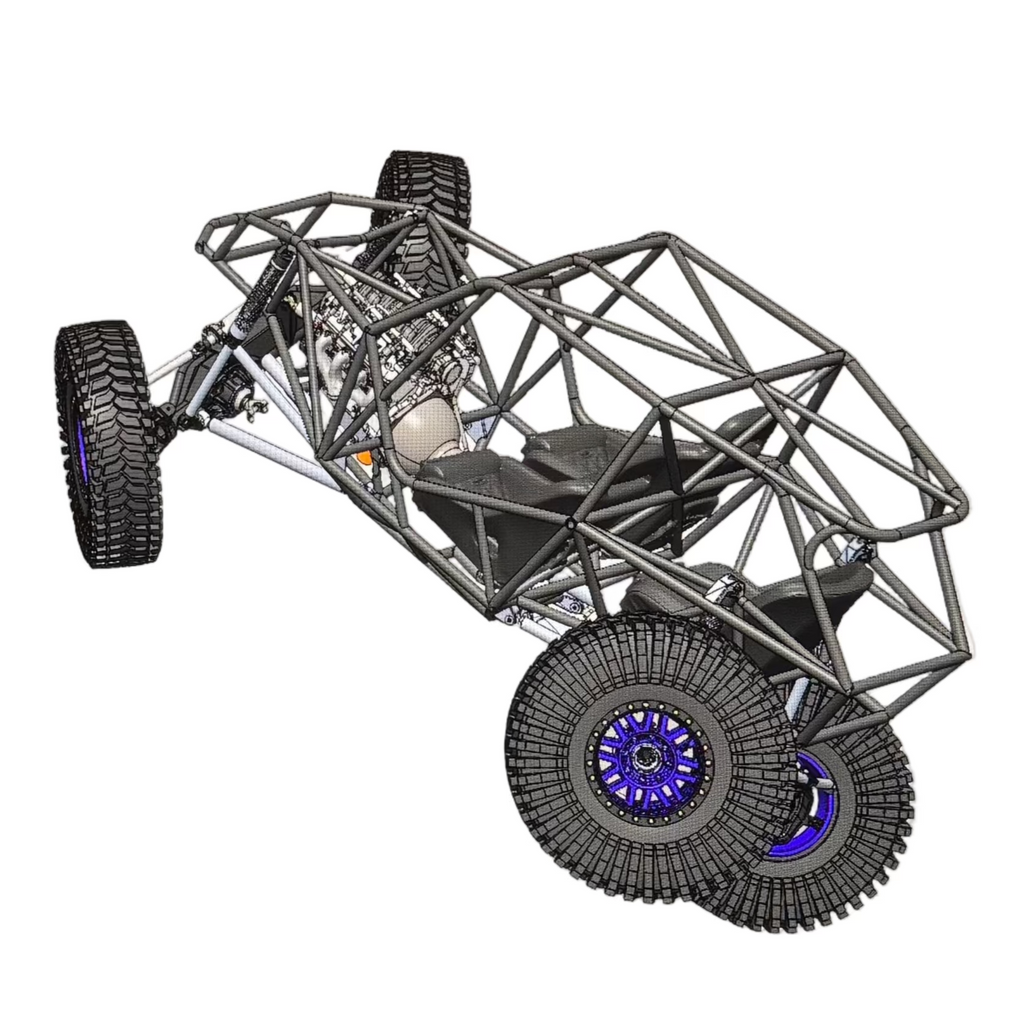

- CAD Designed and CNC Cut/Bent

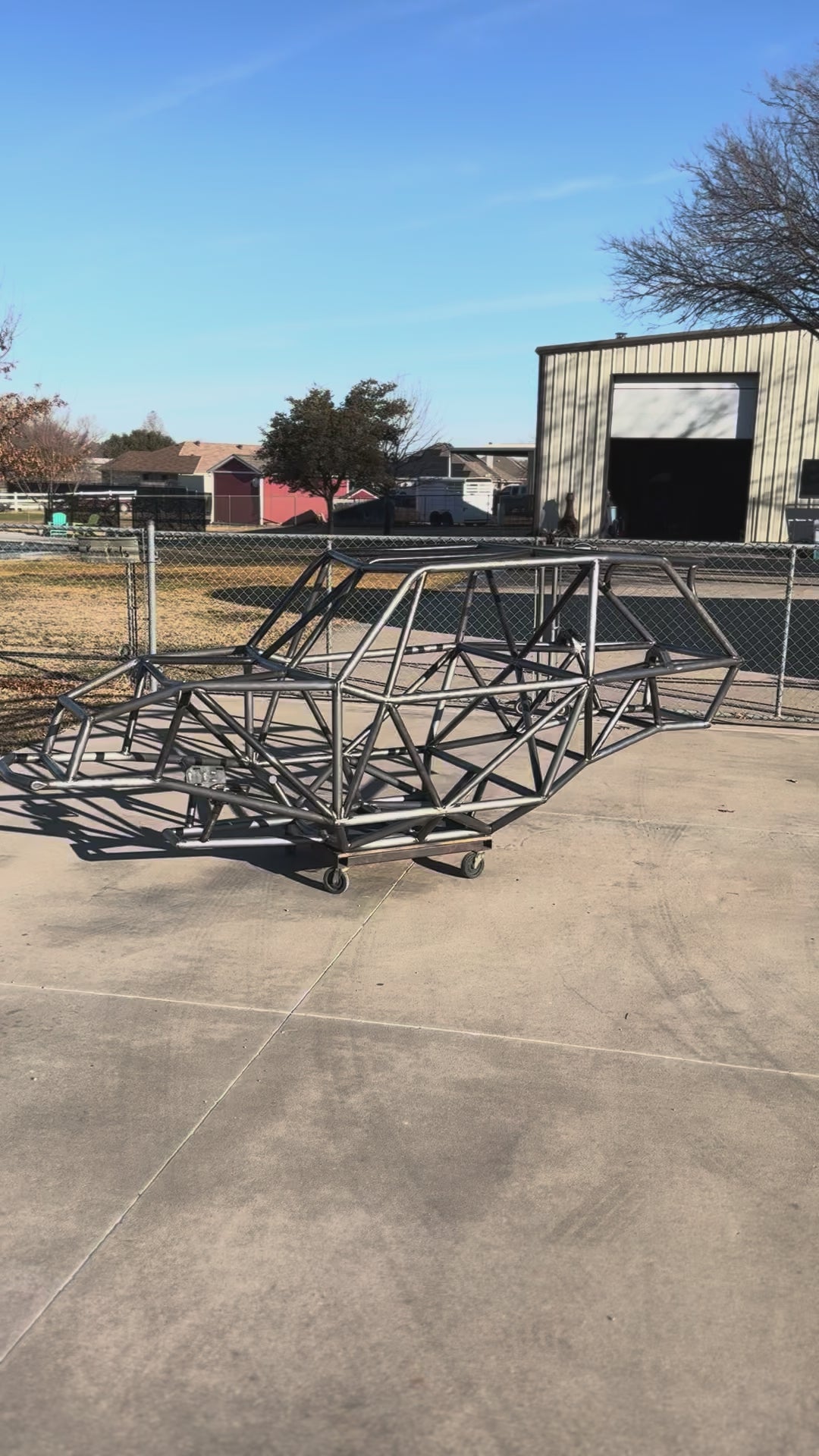

- Jig Assembled
- 2/3 Seats

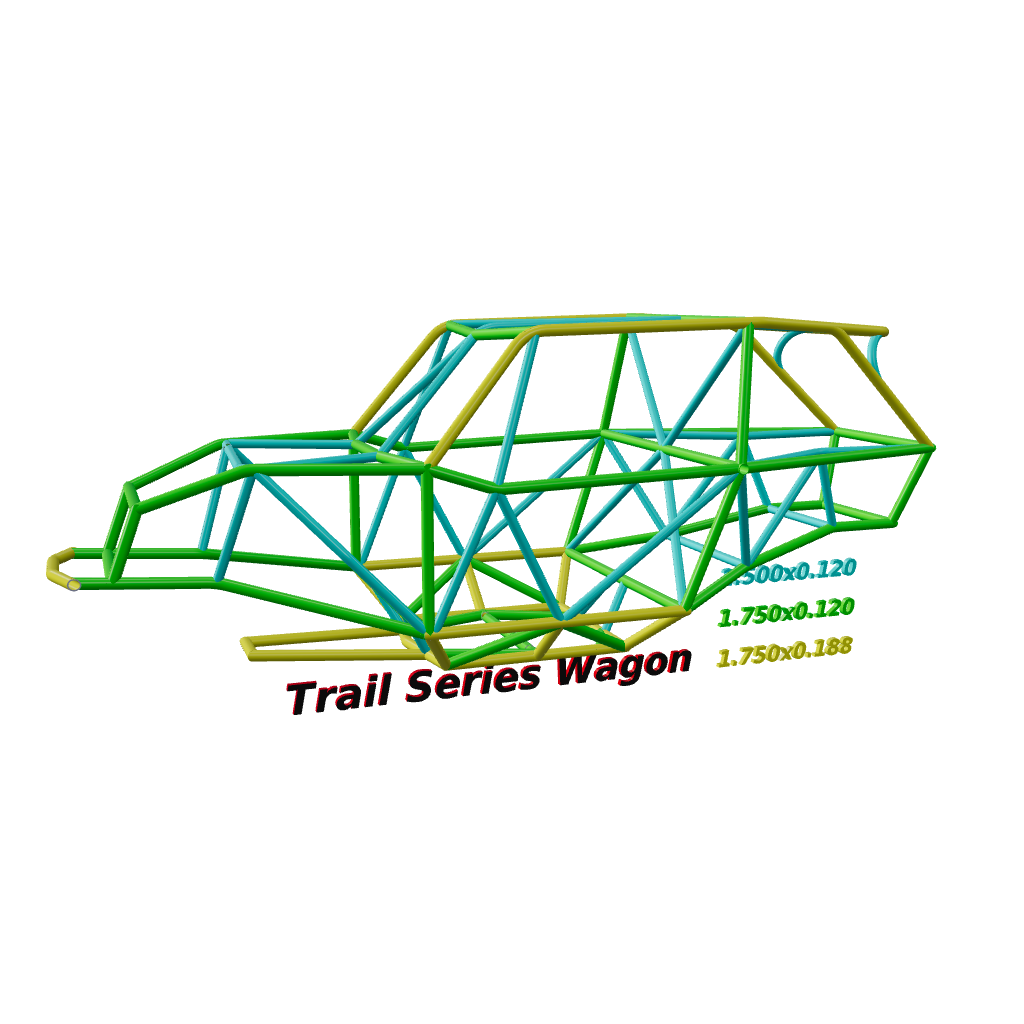

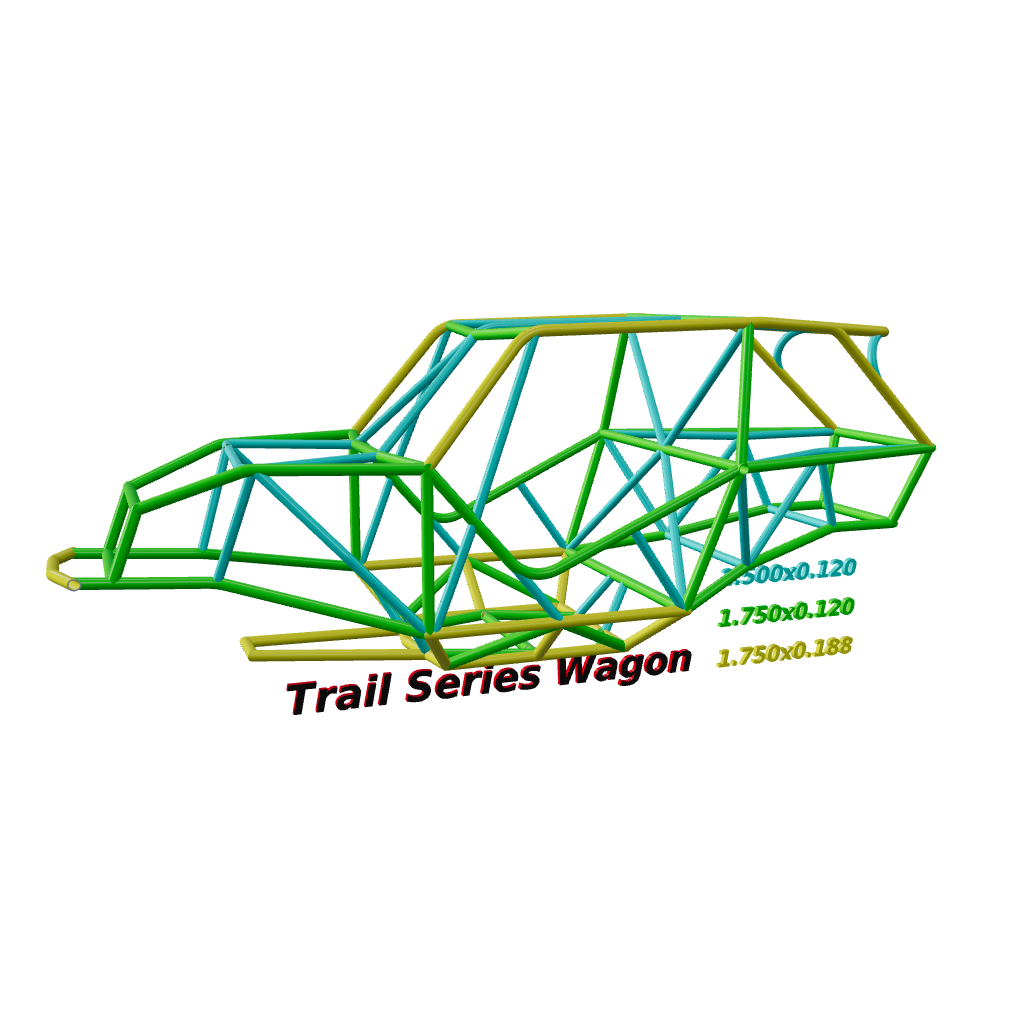

- Door Bar Options

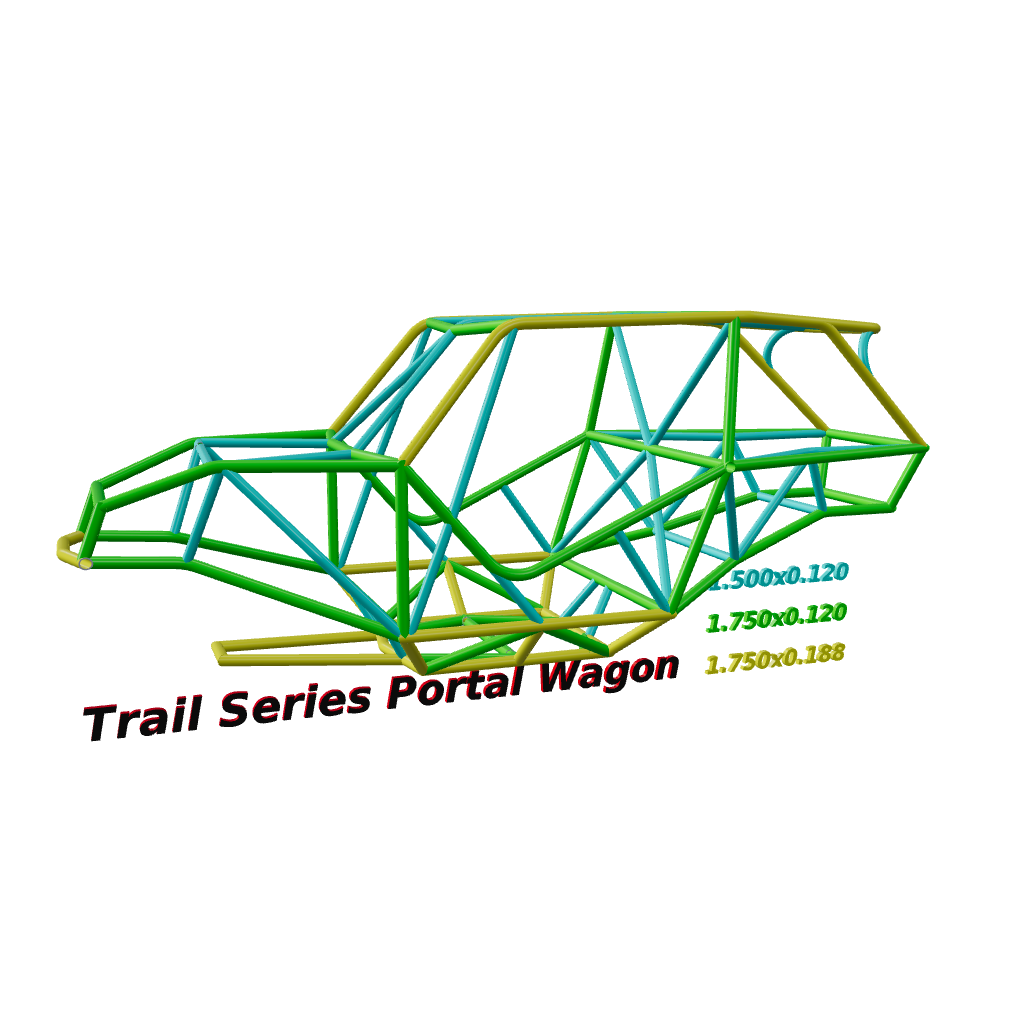

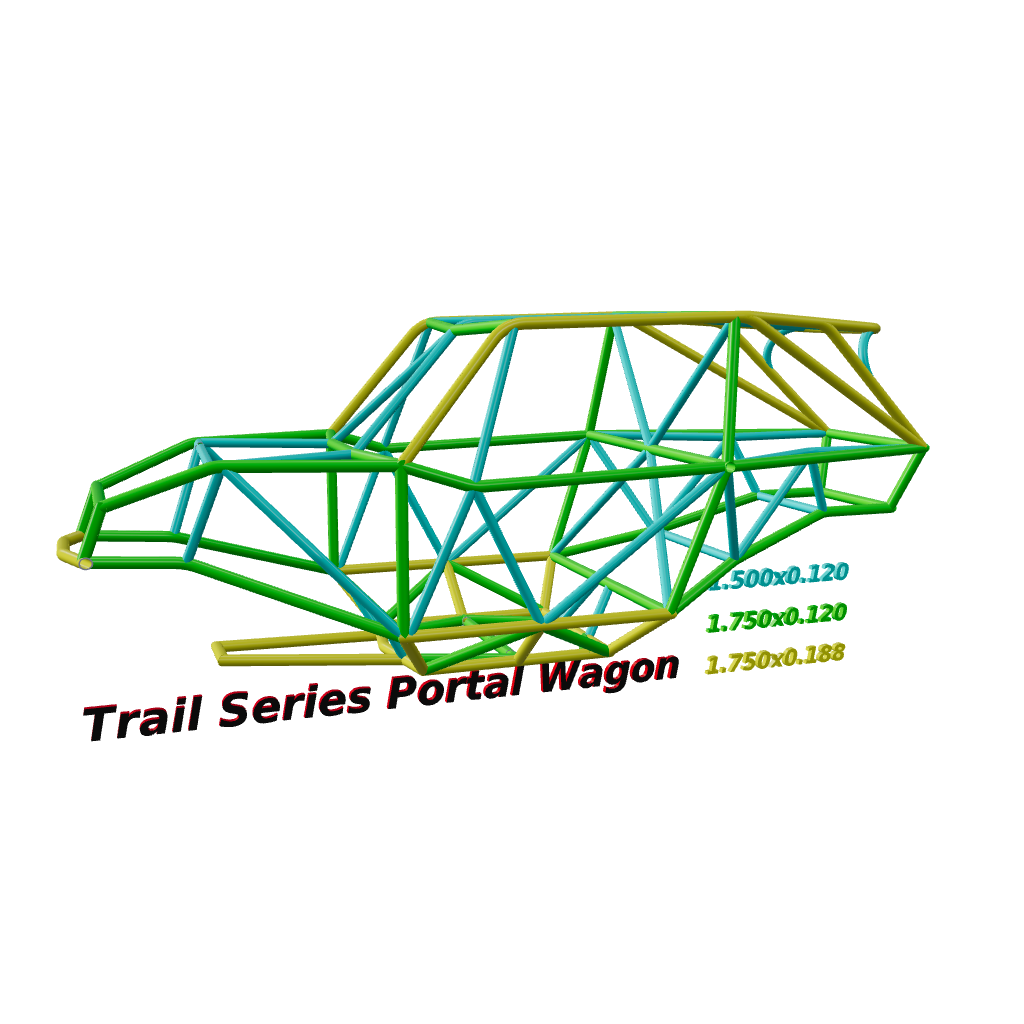

- Portal or Straight Axle Configurations
- Rear Steer Capable
Overview

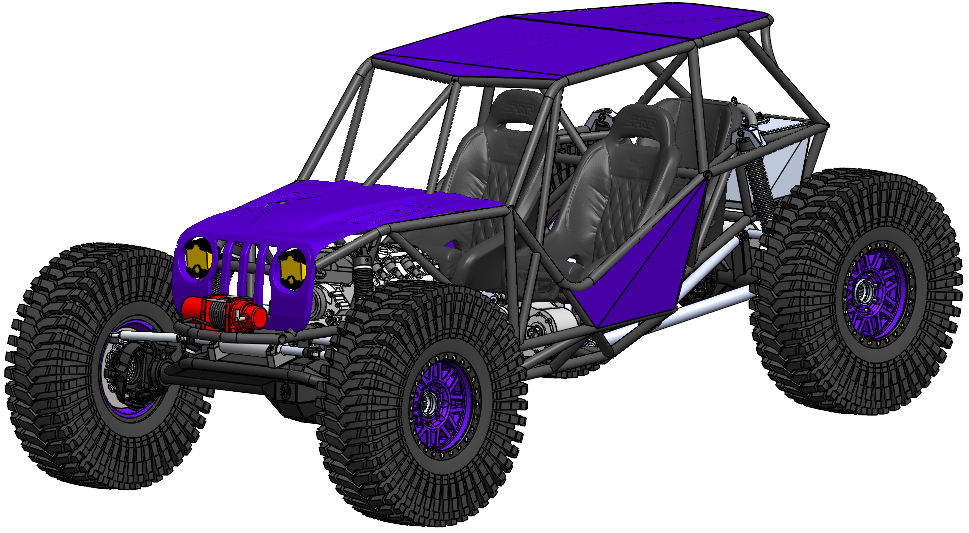

The Accubuilt Trail Series Wagon Chassis is carefully crafted to support your offroad goals while keeping the whole family in mind with dependable durability and precision. Its adaptable design accommodates a wide range of drivetrains and axle setups, so you can customize your build to suit your specific needs. Designed to handle tough, technical terrain, this chassis delivers the strength and reliability required to confidently conquer challenging trails and enjoy a smooth ride home. Whether upgrading an existing vehicle or starting fresh, the Trail Series Wagon provides a reliable foundation that enables builders to achieve both performance and durability in demanding offroad conditions.
What happens after you pay the deposit?
-
If we haven't already been in contact we will contact you within 24 hours to confirm build details and other options that may not yet be on website
-
A personalized invoice is created with your remaining balance, shipping if needed and other custom add ons.
-
Your chassis is then scheduled in our build queue
-
When the chassis is complete, you’ll receive a pickup date
-
Remaining balance must be paid in full before pickup
Builder Recommendations
Axles
- Wheelbase - 110"-116"
- Minimum WMS - 67"
- Recommended WMS - 72"
- Front and Rear Steer - 40-45 Degrees
Suspension
- Shocks - 16"-18" F/R
- Fits ORI, 2.5 Air Shock or 2.5 Coilover
- Easily Setup for 6-8" Uptravel
Drivetrain
- LS/TH400/Atlas or Smaller Drivetrain
- Driver or Passenger Drop T-Case
- Front or Rear Radiator (Portal frame with a LS or similar size engine need a cooling system that is to large to fit up front with higher frame rails. Rear radiator is highly suggested unless your using a smaller motor that uses a smaller cooling package)
Uses and Capacity
- Comfortably fits up to 6’ 3” 250 lbs people in front seats
- Larger people can be made to fit depending on drivetrain and seat frame modification
- Engineered for intense rock crawling with a strong emphasis on trail riding and a hint of racing in its design, the Accubuilt Trail Series is suitable for various terrains from coast to coast.
Specifications
- A Pillar Width - 50"
- B Pillar Width - 52"
- Cab Length - 49"
- Cab Height - 43.5"

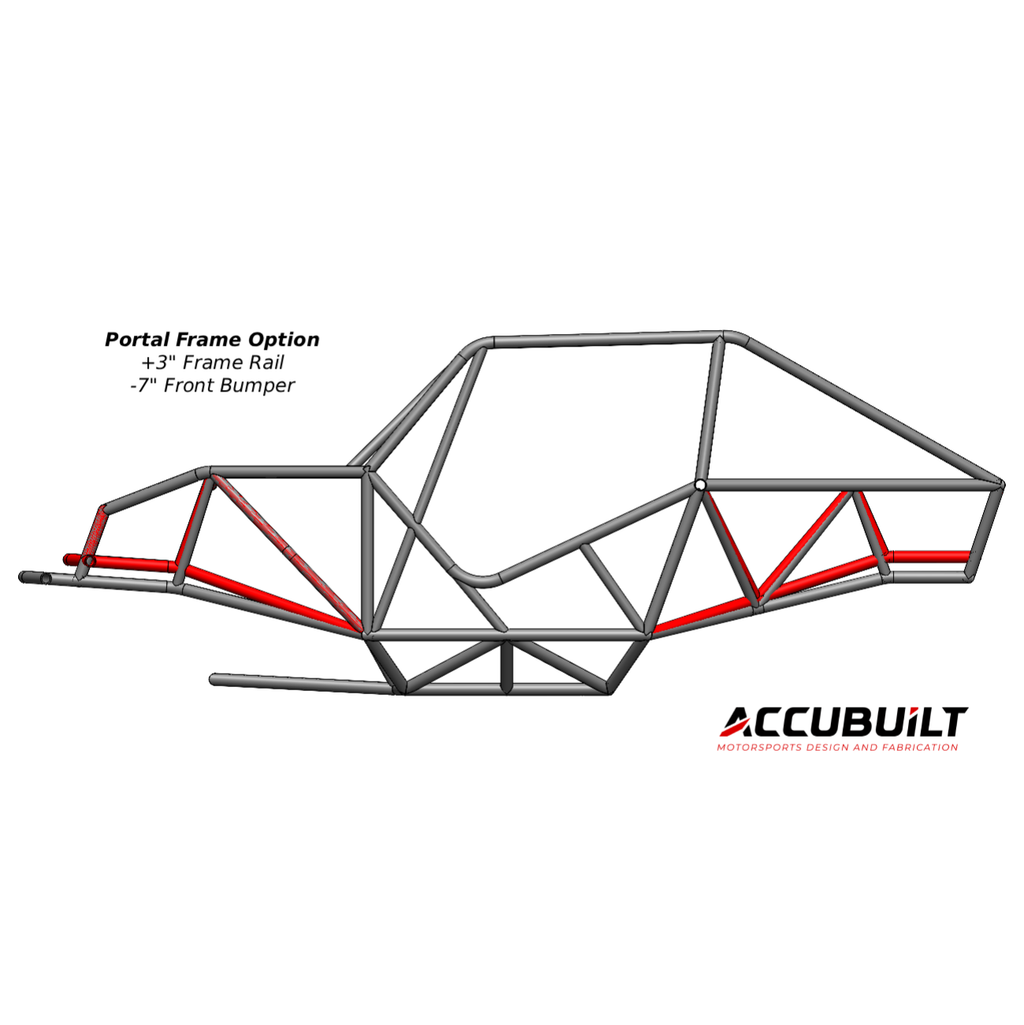

- Total Length - 143.5" (-7" with Portal Frame)
All measurements are on center
Important Notes
- Mark threw price is total chassis cost.
- Deposit is non-refundable once production begins.
- Lead times vary based on current queue and options.
- Pickup location: Haslet TX 76052
- If you need shipping instead of pickup, contact us before paying the deposit.
