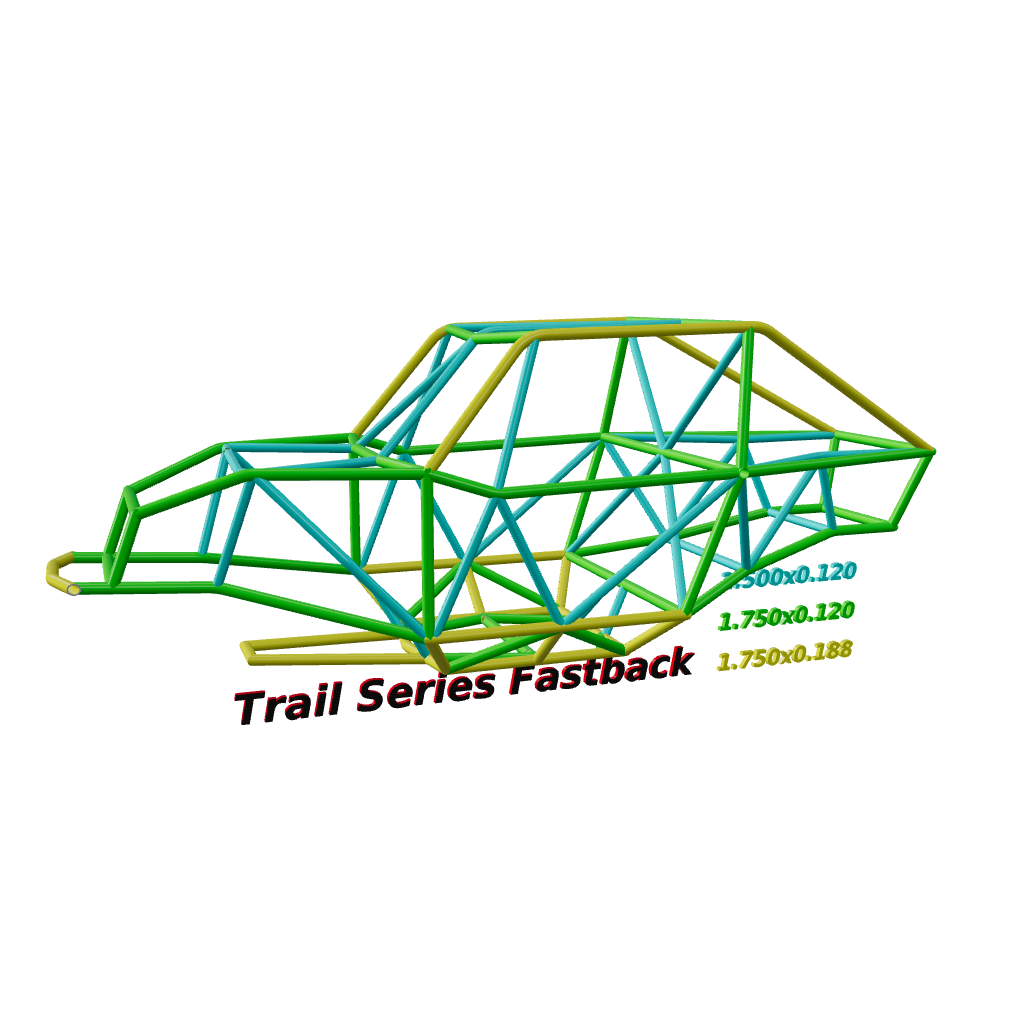

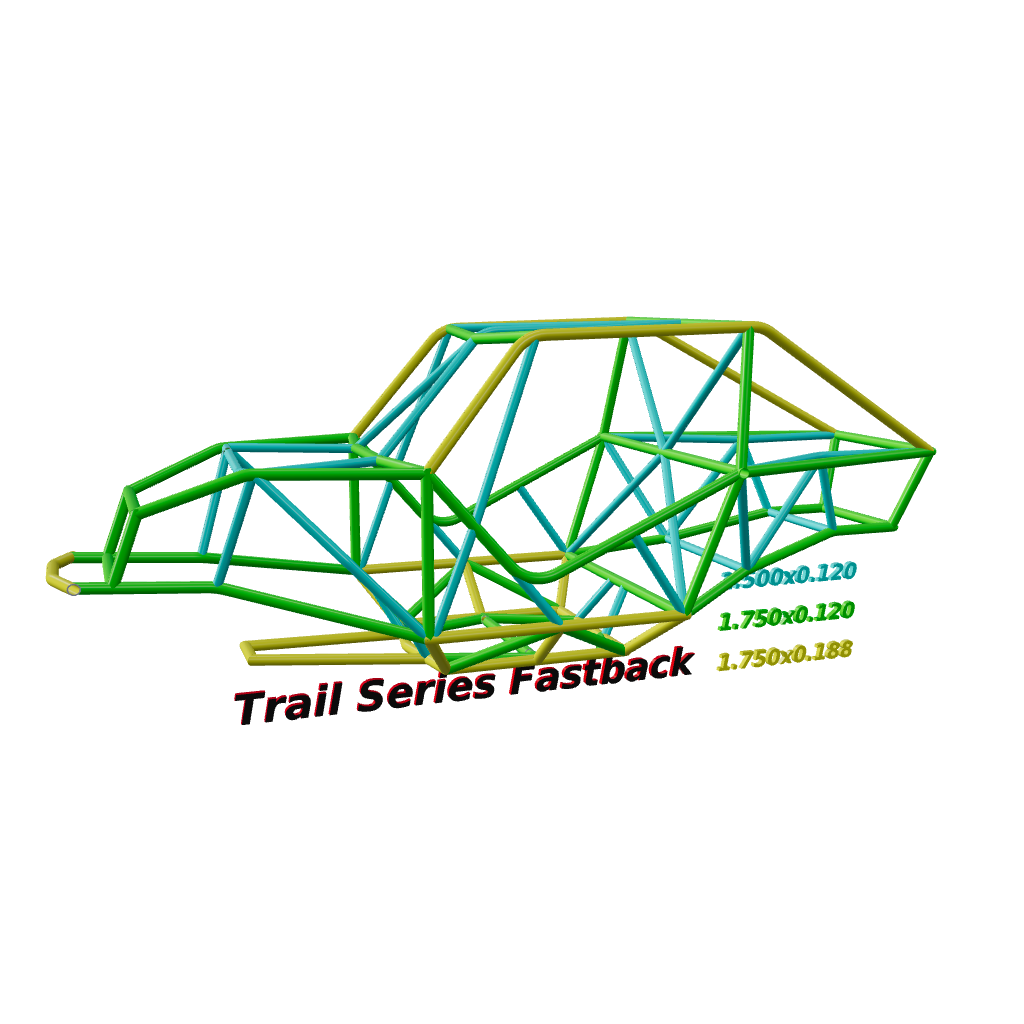

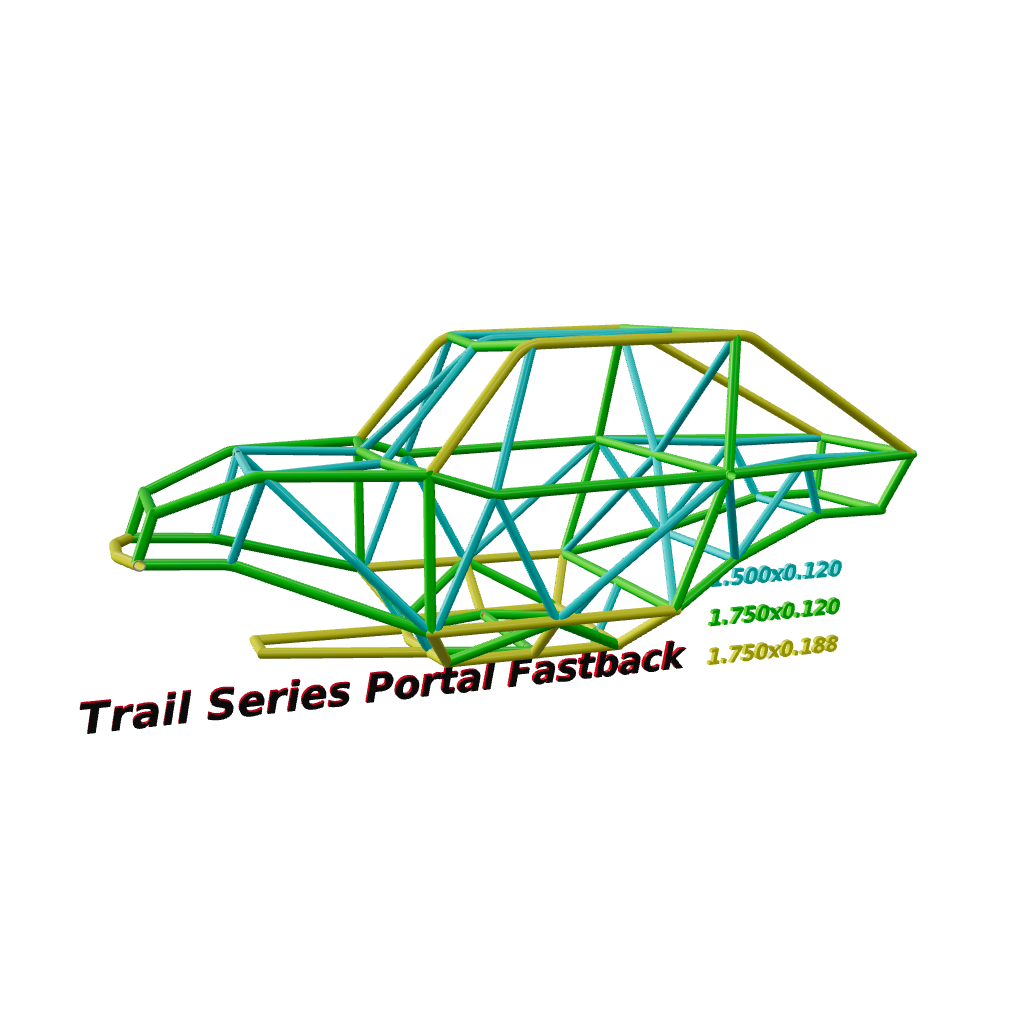

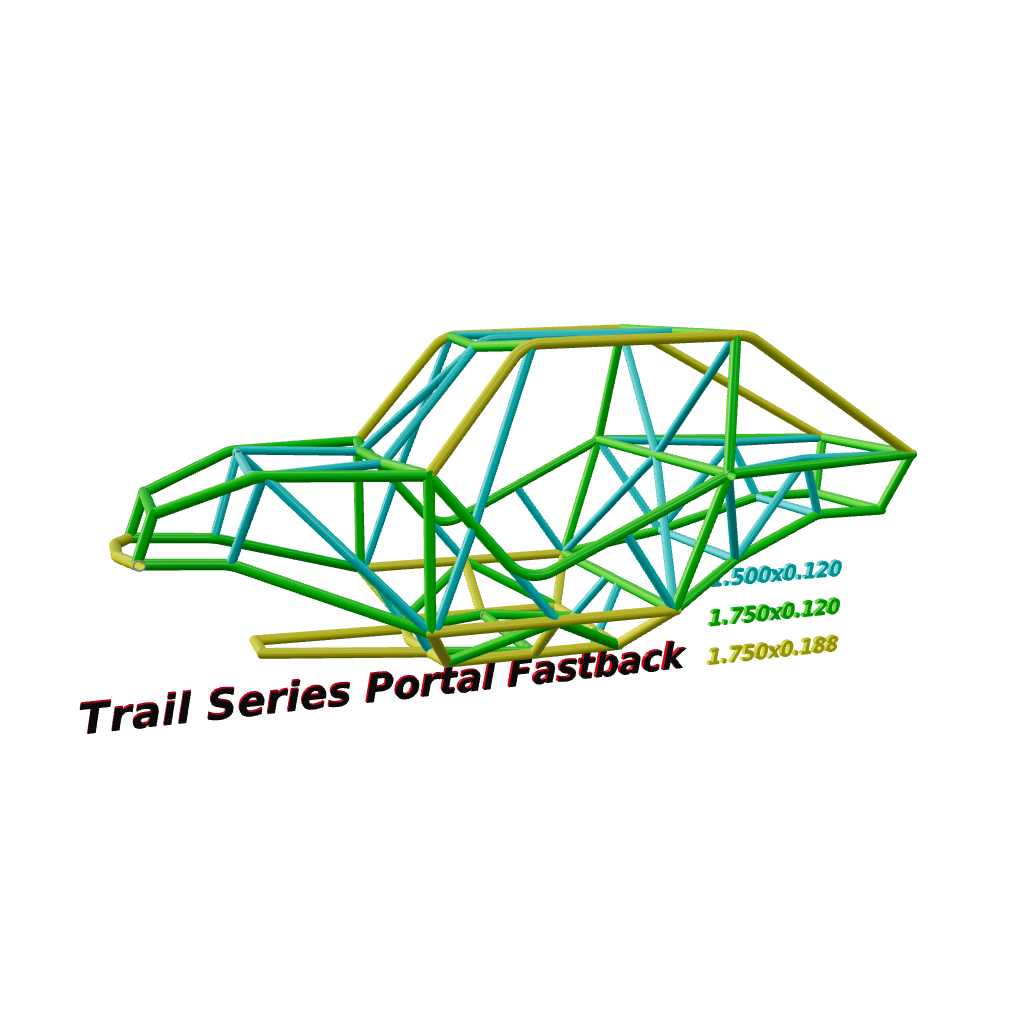

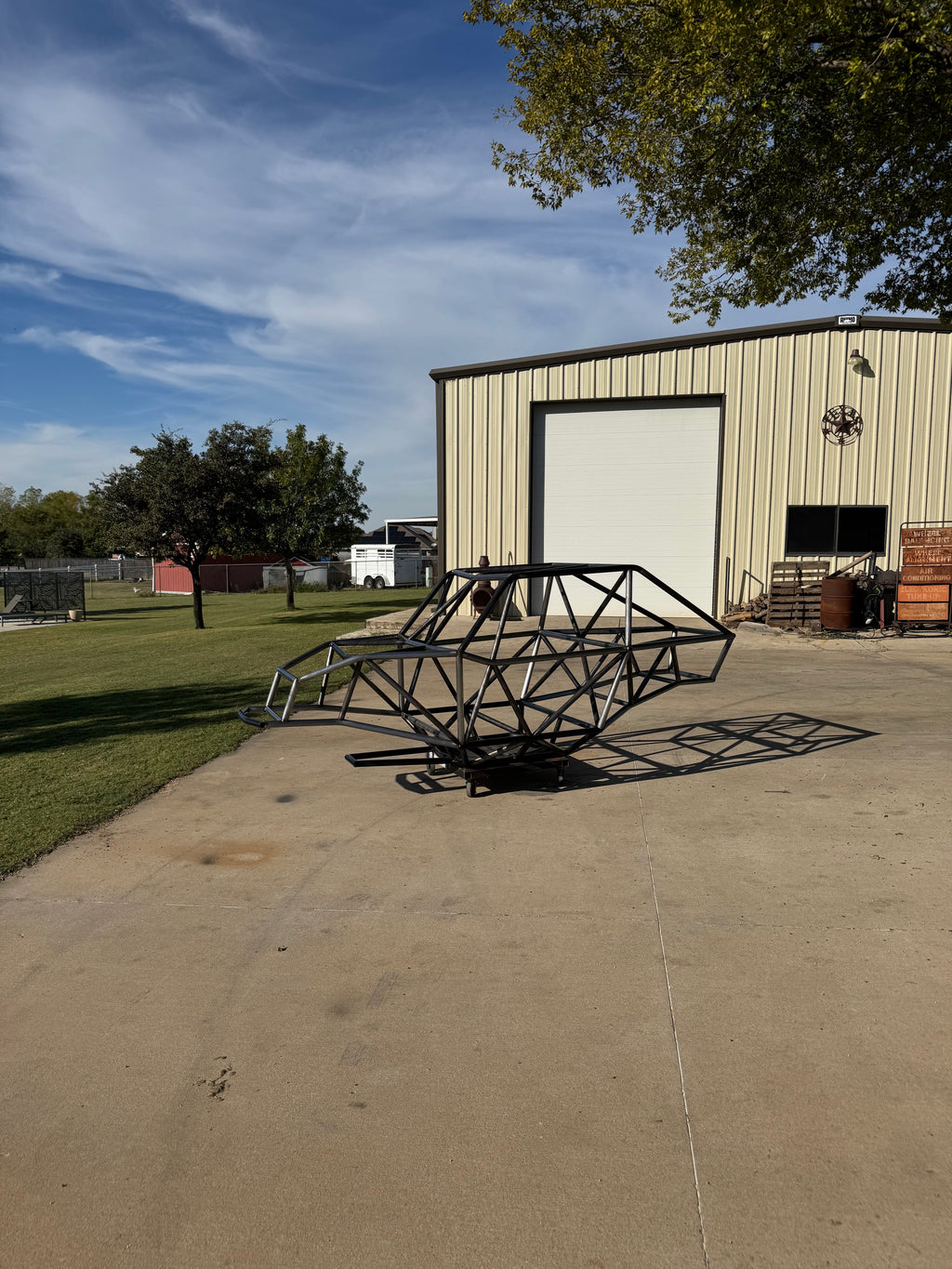

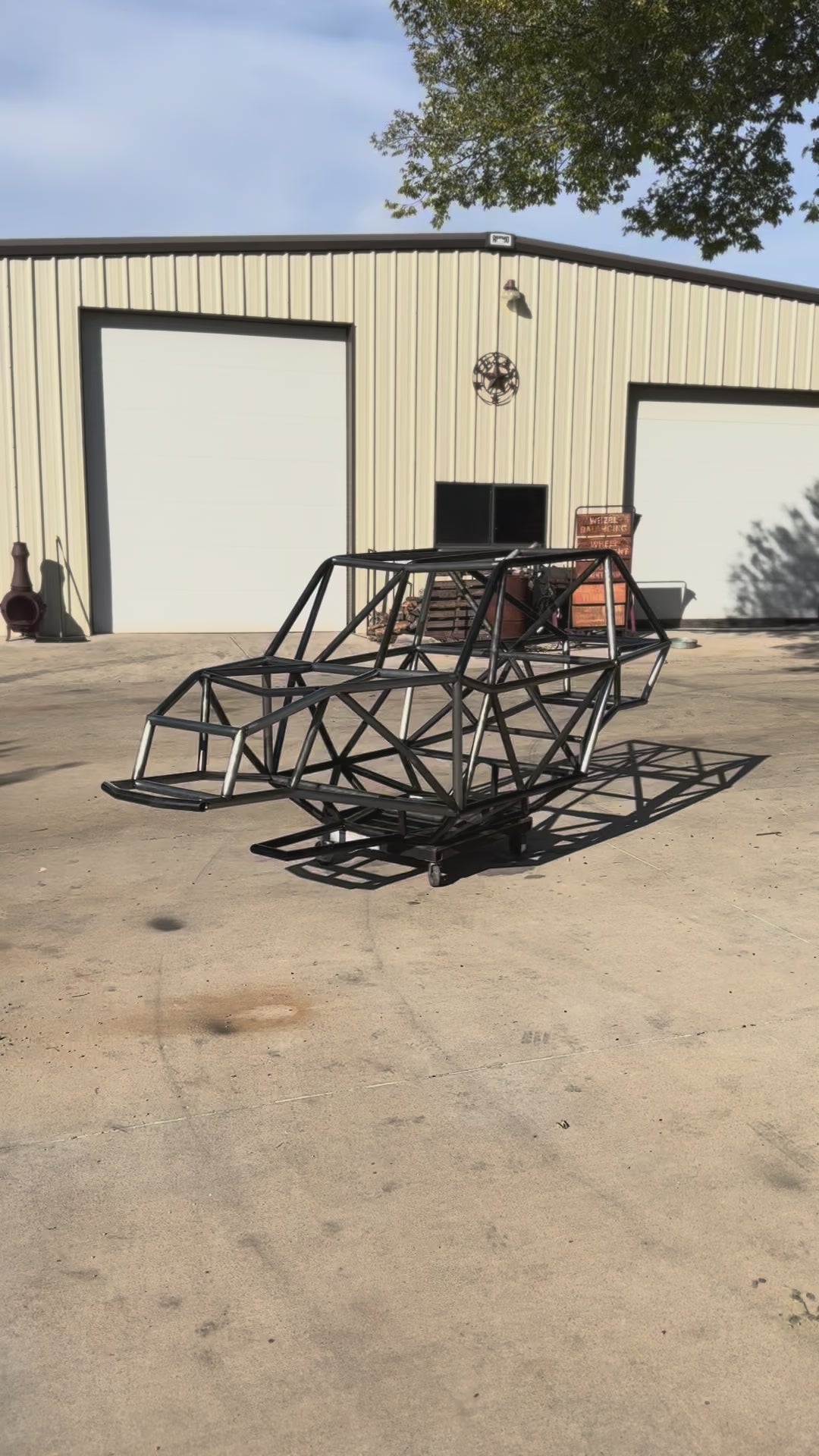

Accubuilt Trail Series Fastback Chassis
$4,750.00
Chassis are cut to order with a 4-6 week processing time
Currently no shipping options pickup only in Haslet TX
Highlights
- CAD Designed and CNC Cut/Bent
- Jig Assembled
- 2 Seats
- Door Bar Options
- Portal or Straight Axle Configurations
- Rear Steer Capable
Overview
The Accubuilt Trail Series Fastback Chassis is thoughtfully engineered to support your offroad ambitions with a foundation that combines precision and durability. Its flexible design welcomes a wide variety of drivetrains and axle setups, allowing you to tailor your build to exact specifications. Built to endure challenging technical terrain, this chassis provides the strength and reliability needed to confidently take on difficult trails and enjoy a smooth ride home. Whether you’re upgrading an existing vehicle or starting from scratch, the Trail Series Fastback offers a dependable base that empowers builders to achieve both performance and resilience in demanding offroad environments.
Builder Recommendations
Axles
- Wheelbase - 110"-116"
- Minimum WMS - 67"
- Recommended WMS - 72"
- Front and Rear Steer - 40-45 Degrees
Suspension
- Shocks - 16"-18" F/R
- Fits ORI, 2.5 Air Shock or 2.5 Coilover
- Easily Setup for 6-8" Uptravel
Drivetrain
- LS/TH400/Atlas or Smaller Drivetrain
- Driver or Passenger Drop T-Case
- Front or Rear Radiator (Portal frame with a LS or similar size engine need a cooling system that is to large to fit up front with higher frame rails. Rear radiator is highly suggested unless your using a smaller motor that uses a smaller cooling package)
Uses and Capacity
- Comfortably fits up to 6’ 3” 250 lbs people in front seats
- Larger people can be made to fit depending on drivetrain and seat frame modification
- Engineered for intense rock crawling with a strong emphasis on trail riding and a hint of racing in its design, the Accubuilt Trail Series is suitable for various terrains from coast to coast.
Specifications
- A Pillar Width - 52"
- B Pillar Width - 48"
- Cab Length - 49"
- Cab Height - 43.5"
- Total Length - 143.5" (-7" with Portal Frame)
All measurements are on center
Built To Order
Prior to constructing your chassis, we will contact you to validate all options and ensure we build the optimal spec for you. Because each chassis is built to order allow 4-6 weeks for chassis assembly, extra options may add more time.
